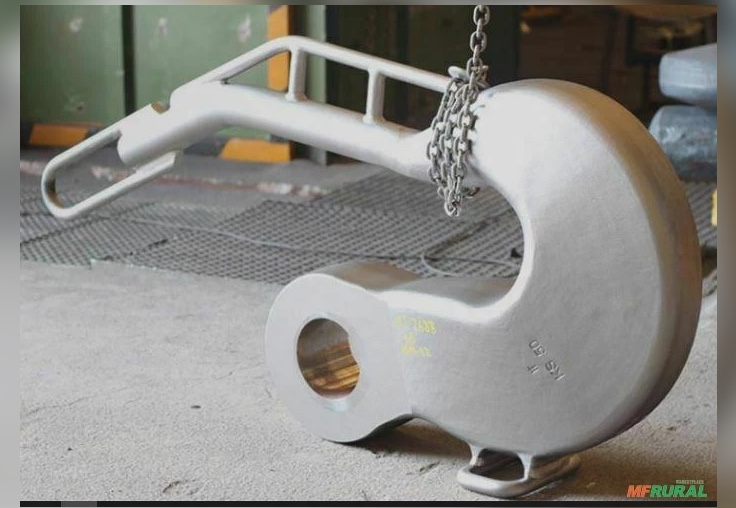

KS 50 Hook Dia 105mm up to 120mm Mooring Chain
Product Detail
KS Hooks for underwater operations in anchoring line installations
App: Chain recovery hook.
SWL: KS40 (200 t)
KS50 (345 t)
ABS approved (R4 forged)
These state-of-the-art forged hooks support underwater operations in anchoring line installations. The nose is designed to 'fish' other pieces or parts that may be at the same depth or on the same line.
The hooks are crafted from a combination of carbon, alloys, and superalloys, with a focus on utilizing super alloy steel (R4) for maximum strength. The forging and heat treatment process, including a nose welding technique, ensure the hooks are not only durable but also resistant to the harsh underwater conditions.
With a minimum safety factor of 4:1, these forged hooks prioritize safety in every operation. This commitment is further emphasized by the availability of load tests, including ILO-3, FAT, or breaking tests upon request. This dedication to safety sets these hooks apart as a reliable choice for critical underwater tasks.
