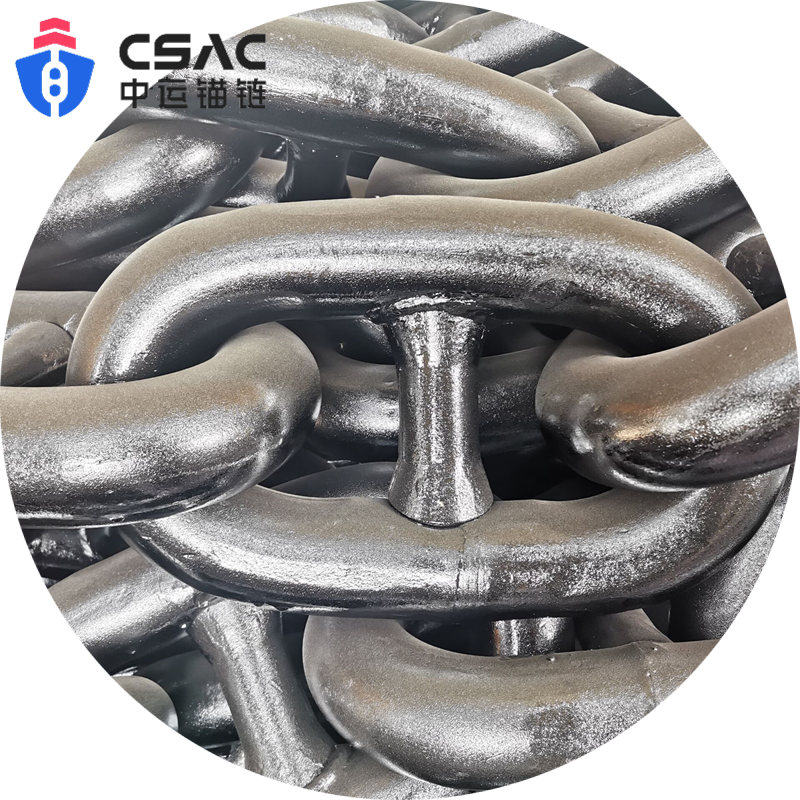

Anchor Chain Cable With BV LR ABS IRS RINA- China Shipping Anchor Chain

Product Detail

1. Variety: Grade1, Grade 2,Grade 3,ORQ,R3,R3S,R4stud link anchor chain; studless anchor chain; buoy chain,D-type anchor

shackle; Hatch-cover chain,lifting chain,kiln chain and others; DIN Standard chain; Special chain as per your requirments and

their accessories.

2. MATERIAL GRADE: ANCHOR CHAIN:GRADE 2/U2, GRADE 3/U3，

MOORING CHAIN:ORQ,R3,R3S

3.Material:20Mn (CM490),30Mn(CM690)

4.Length: 25m or 27.5m or as per your request.

5. FLASH BUT WELED

6.Surface: Self Color, Black Painted, Hot Dip Galvanized

7.Relevant Certificates: ABS, BV, CCS, DNV, KR, LR, GL, NK and RINA etc.

8. Grade U2 / U3 from 12.5mm to 162mm; Grade ORQ / R3 /R3S / R4 from 58mm to 162mm

9. accessories: kenter shackle, joining shackle. anchor shackle,pear type joining shackle

buoy shackle type A, Swivel shackle

pear type link, trangle plate.

10.Difference between Stud link chain and studless chain:

Originally studs were added to the chain to stiffen the links preventing them from severely deforming when overloaded. They have

the added advantage in that they prevent the chain from knotting up when twisted, thus avoiding problems when chain is retrieved

with a windlass.

11.Packing: Wire Rope Bundled, Ton Bag, Wooden Box, as required

Using range:a.Marine chain b.Fishing &boat chain;c.Mine chain;d.Cement lifting round chain.

12. Shipping port: Qingdao port/Shanghai port
